Parameters
1. Environmental conditions:
Gas source pressure: 0.5-0.6 Mpa
Power supply voltage: 220V, 50Hz
Total power: ≤ 30KW
Area load ratio: ≤ 500kg/M ² Environmental temperature: 5 º C-50 º C
Humidity: 20% -90%
2. Production line efficiency: ≥ 3000PCS/h
3. Equipment utilization rate: ≥ 95% (maintenance caused by equipment failures, but regular maintenance, pre production preparation, compatible fixture replacement, etc.)
Excluding the replacement of raw materials and materials;
4. Product qualification rate:>99% (excluding defective incoming materials)
Product introduce:

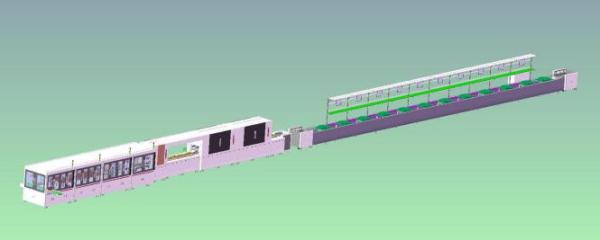

The wire body is used for PACK matching welding and assembly functions of cylindrical lithium battery module. The main process flow includes: charging the whole battery box, automatic picking by manipulator, first scanning of the battery core, OCV test and sorting of the battery core, caching of the battery core, pasting of highland barley paper, exchange of positive and negative electrodes of the battery core, secondary scanning of the battery core, automatic charging of the battery core into the bracket, CCD polarity detection, manual installation of the bracket, manual installation of the jig and nickel piece, automatic welding surface A, the module is automatically turned over, the surface B is automatically spot welded, the module is automatically turned over, the upper cover plate is manually taken back, the nickel sheet and the bracket are manually loaded back, the module is switched to PACK line, the pack is manually assembled, and the finished product is offline.
